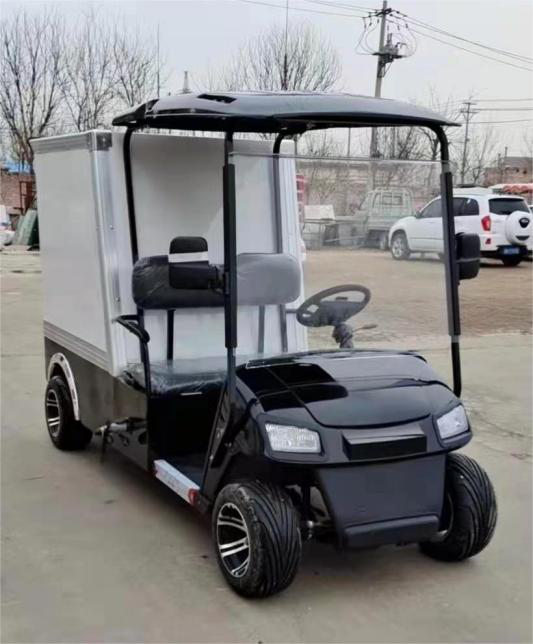

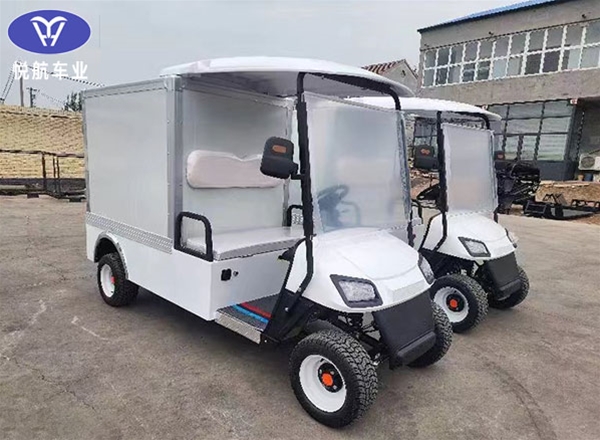

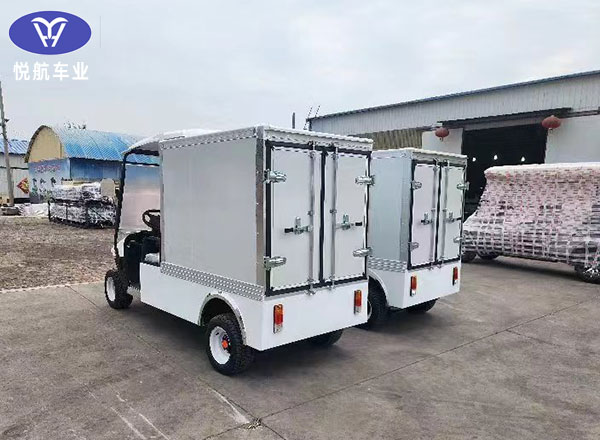

2 SEATS ELECTRIC FREIGHT CAR

Model

VCTP24

Key Components

Motor

5KW AC Motor 60V

Battery

Dry gel battery12V/piece - 5 pieces - 100Ah

Controller

Controller AC 60V Enpower MC3336-7240

- Control the power converter for AC motors

- Smooth motor control, no jerking, ensuring safety, improving working efficiency

- Control operating modes (forward, reverse)

- Protects the motor from overload, overvoltage, and overheating

Charger

- Charging time 8 to 10 hours

- The vehicle cannot move while charging

- Input power : 220V

- Output power: 60V

Vehicle standard

TS2537014-2025 (Execution Standard)

TSG 81—2022 (Safety Standard)

Performance

Passenger capacity

2

Load capacity

150Kg

Maximum travel distance (at speed 20 km/h)

80-100 km

Max. speed

28km/h

Stopping distance when braking at 20km/h

≤5m

Minimum turning radius (m)

6.75m

Max. climbing ability (loaded)

10%

Curb weight

450 Kg

Total weight (including people and luggage)

600 Kg

Dimensions

Overall dimensions:LxWxH (mm)

3100×1200×1920mm

Ground clearance (mm)

150mm

Wheelbase (mm)

2420mm

Wheel tread (mm)

front 890mm/ rear 1010mm

Body and Frame

Color

White (Optional)
