11座老爷观光车
Address: South of Dongshou Road, Zhenhua Street, Wucheng County, Dezhou City, Shandong Province, China
|

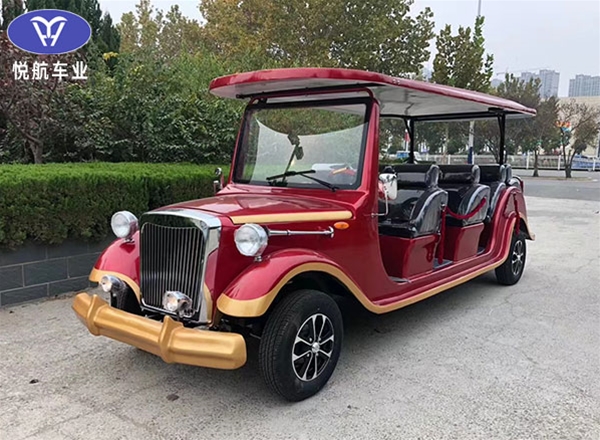

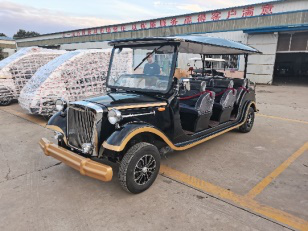

8 SEATS ELECTRIC TOURIST CAR |
|
|
|
Model |
V11C |
|
|
Key Components |
||
|
Motor |
7.5KW AC Motor 72V |
|
|
Battery |
Dry gel battery12V/piece - 6 pieces - 103Ah |
|
|
Controller |
Controller AC 72V Enpower MC3336-7240 - Control the power converter for AC motors - Smooth motor control, no jerking, ensuring safety, improving working efficiency - Control operating modes (forward, reverse) - Protects the motor from overload, overvoltage, and overheating |
|
|
Charger |
- Charging time 8 to 10 hours - The vehicle cannot move while charging - Input power : 220V - Output power: 72V/30A |
|
|
Vehicle standard |
TS2537014-2025 (Execution Standard) TSG 81—2022 (Safety Standard) |
|
|
Performance |
||
|
Passenger capacity |
8 |
|
|
Load capacity |
600 Kg |
|
|
Maximum travel distance (at speed 20 km/h) |
80-100 km |
|
|
Max. speed |
30km/h |
|
|
Stopping distance when braking at 20km/h |
4m |
|
|
Minimum turning radius (m) |
6.5m |
|
|
Max. climbing ability (loaded) |
20% |
|
|
Curb weight |
650 Kg |
|
|
Total weight (including people and luggage) |
1250 Kg |
|
|
Dimensions |
||
|
Overall dimensions:LxWxH (mm) |
5000×1510×1920mm |
|
|
Ground clearance (mm) |
290mm |
|
|
Wheelbase (mm) |
3430mm |
|
|
Wheel tread (mm) |
front 1290mm/ rear 1280mm |
|
|
Body and Frame |
||
|
Color |
White/Yelow/ Red… (Optional) |
|
|
Frame |
Iron metal case |
|
|
|
Body |
Iron metal case |
||
|
Roof |
Optional (elastic type) |
||
|
Seats |
- 8 seats divided into 3 rows, Cold insulation foam, high elastic PU leather fabric, in the same direction, securely mounted on the vehicle, seat cushions made of foam covered with artificial leather, with seat belts - Adjustable driver's seat : + Vertical slide: 200mm + Lean back: 90-180 degrees |
||
|
Luggage compartment |
Behind |
||
|
Tires |
155R12C 4pcs tubeless tires Aluminum hub wheel,Powder Coating |
|
|
|
EPS |
Electric Power Steeing |
||
|
Chassis |
High strength structural steel |
||
|
Steering |
Car steering wheel |
||
|
Braking System |
Front and rear hydraulic drum brakes, dual-circuit hydraulic brakes, parking brake device |
||
|
Suspension |
MacPherson independent suspension + integrated rear axle |
||
|
Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration） |
|||
|
Body And Frame |
|
||
|
Windshield |
Windshield (colorless), has wipers, wide vision |
S |
|
|
Seatbelt |
|
S |
|
|
Reviewer mirror outside |
Manual outside rearview mirror |
S |
|
|
|
|||
|
Dashboard |
|||
|
Radio with USB |
|
S |
|
|
The dashboard shows speed |
|
S |
|
|
Lighting |
Combined headlights, combined taillights, overhead decorative lights, electric horn and reverse horn, USB charging socket + cigarette lighter |
S |
|
|
9 inch LCD screen (no reverse camera) |
|||
|
Working Voltage |
12-14V |
O |
|
|
Allowable voltage range |
10.8-16V |
||
|
Working curent |
Max 15A |
||
|
Screen size |
9 inch |
||
|
Resolution |
1024*600 pixels |
||
|
Languages |
English, Chiness, Spanish, Portuguese, Russian, Italian, German, French, Polish… |
||
|
Connection |
Bluetooth |
||
